Description

Ifor Williams – Plant Trailers

GH models are of galvanized welded construction with leaf spring suspension ensuring they will withstand tough conditions. Our range comprises of four model options; GH64, GH94, GH94BT and GH1054.
The single axle GH64 is compact yet robust providing a neat and convenient trailer that can be towed behind a car, the 1230kg payload is designed for smaller items of plant such as micro-excavators.

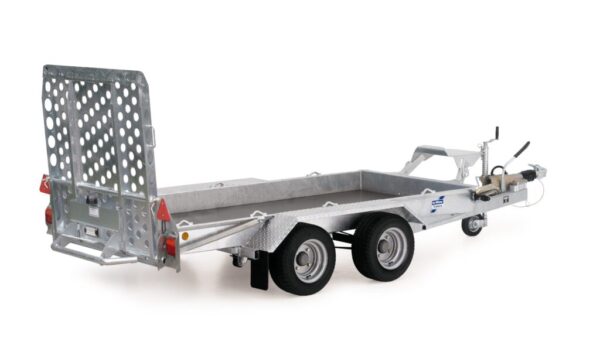

The GH94 comes in two versions – most popular is a beavertailled version and the GH94 with a flatbed. The Beavertail feature means that the excellent loading angle of 13⁰ is maintained during loading. A thick resin coated plywood platform (24mm) makes this trailer particularly suitable for carrying rollers as well as excavators. The 2.79m (9’) length means it provides ample loading space behind the rear axle. This enables a full range of mini-excavators to be loaded along with machines with a more central centre of gravity, such as hi-tip dumpers.

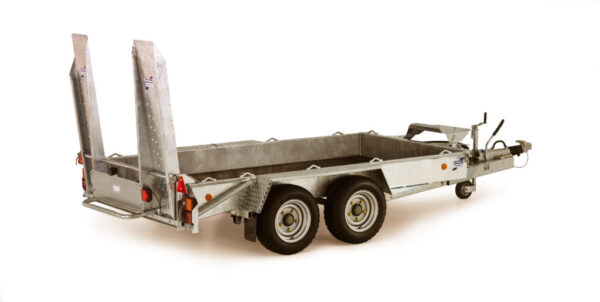

The GH1054 is only available with a beavertailled feature and offers one of the highest payloads ever produced by Ifor Williams Trailers, 3500kg GTM. All GH model are offered with a full width ramp or adjustable skids.
GX Series trailers are constructed from folded pre-galvanized steel sections and are offered with hinged adjustable skids or a full-width loading ramp plus a built-in bucket rest as standard. Sizes range from the smallest GX84 up to the largest GX126. GX Models are available with maximum gross weights of 2700kg and 3500kg.

Model Specifications

Model Tyres Gross Weight Tare Weight Internal Length Internal Width Overall Length Overall Width
GH64 195/55R10C 1500kg 270kg 1.88m/6’1″ 1.23m/4′
GH94 195/55R10C 2700kg 500kg 2.79m/9’1″ 1.31m/4’3″
GH94BT 165R13C 2700kg 530kg 2.79m/9’1″ 1.31m/4’3″
GH1054 185/70R13C 3500kg 660kg 3.04m/9’11” 1.62m/5’4″
GX126 155/70R12C 3500kg 795kg 3.66m/12′ 1.84m/6′ 5.70m 2.30m
GX126  Tri –axle 155/70R12C 3500kg 875kg 3.66m/12′ 1.84m/6′ 5.70m 2.30m

GH
Resin Coated Plywood Platform

Resin Coated Plywood Platform

Heavy Duty Jockey Wheel

Heavy Duty Jockey Wheel

GH Treadplate Mudguards

GH Treadplate Mudguards

Bucket Rest

Bucket Rest

GH Lashing Points

GH Lashing Points

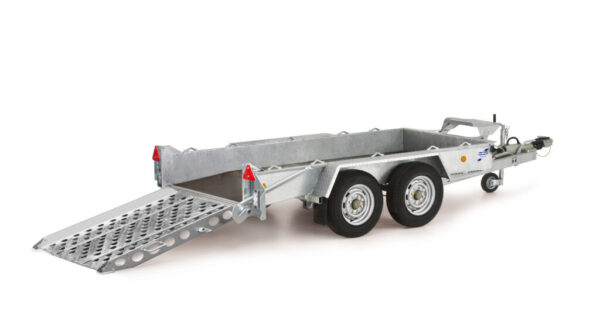

GH Full Width Ramp

GH Full Width Ramp

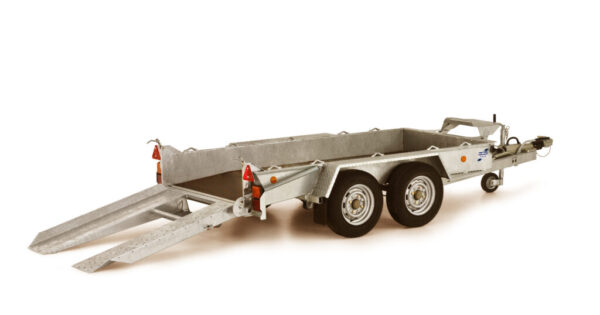

GH Bevelled Ramp

GH Bevelled Ramp

GX
Hinged Skids

Hinged Skids

Spring Assisted Self Supporting Ramp

Spring Assisted Self Supporting Ramp

Resin Coated Plywood Platform

Resin Coated Plywood Platform

Spare Wheel & Carrier

Spare Wheel & Carrier

Heavy Duty Jockey Wheel

Heavy Duty Jockey Wheel

Integrated Prop Stands - Plant

Integrated Prop Stands – Plant

Optional Extras

  • Aluminium floor covering
  • Lashing rings per pair
  • Spare wheel kit
  • GH models have the option of a full width ramp or adjustable sliding skids

KX35324 TREADPLATE GH1054BT

TREADPLATE

KX35320 GH SPARE WHEEL

GH SPARE WHEEL

KX35311 GH WINCH KIT

GH WINCH KIT

Model Details

Ifor Williams – Plant Trailers

GH models are of galvanized welded construction with leaf spring suspension ensuring they will withstand tough conditions. Our range comprises of four model options; GH64, GH94, GH94BT and GH1054.
The single axle GH64 is compact yet robust providing a neat and convenient trailer that can be towed behind a car, the 1230kg payload is designed for smaller items of plant such as micro-excavators.
The GH94 comes in two versions – most popular is a beavertailled version and the GH94 with a flatbed. The Beavertail feature means that the excellent loading angle of 13⁰ is maintained during loading. A thick resin coated plywood platform (24mm) makes this trailer particularly suitable for carrying rollers as well as excavators. The 2.79m (9’) length means it provides ample loading space behind the rear axle. This enables a full range of mini-excavators to be loaded along with machines with a more central centre of gravity, such as hi-tip dumpers.
The GH1054 is only available with a beavertailled feature and offers one of the highest payloads ever produced by Ifor Williams Trailers, 3500kg GTM. All GH model are offered with a full width ramp or adjustable skids.
GX Series trailers are constructed from folded pre-galvanized steel sections and are offered with hinged adjustable skids or a full-width loading ramp plus a built-in bucket rest as standard. Sizes range from the smallest GX84 up to the largest GX126. GX Models are available with maximum gross weights of 2700kg and 3500kg.

Model Specifications

Model Tyres Gross Weight Tare Weight Internal Length Internal Width Overall Length Overall Width
GH64 195/55R10C 1500kg 270kg 1.88m/6’1″ 1.23m/4′
GH94 195/55R10C 2700kg 500kg 2.79m/9’1″ 1.31m/4’3″
GH94BT 165R13C 2700kg 530kg 2.79m/9’1″ 1.31m/4’3″
GH1054 185/70R13C 3500kg 660kg 3.04m/9’11” 1.62m/5’4″
GX126 155/70R12C 3500kg 795kg 3.66m/12′ 1.84m/6′ 5.70m 2.30m
GX126  Tri –axle 155/70R12C 3500kg 875kg 3.66m/12′ 1.84m/6′ 5.70m 2.30m
Key Features

GH
Resin Coated Plywood Platform

Resin Coated Plywood Platform

Heavy Duty Jockey Wheel

Heavy Duty Jockey Wheel

GH Treadplate Mudguards

GH Treadplate Mudguards

Bucket Rest

Bucket Rest

GH Lashing Points

GH Lashing Points

GH Full Width Ramp

GH Full Width Ramp

GH Bevelled Ramp

GH Bevelled Ramp

GX
Hinged Skids

Hinged Skids

Spring Assisted Self Supporting Ramp

Spring Assisted Self Supporting Ramp

Resin Coated Plywood Platform

Resin Coated Plywood Platform

Spare Wheel & Carrier

Spare Wheel & Carrier

Heavy Duty Jockey Wheel

Heavy Duty Jockey Wheel

Integrated Prop Stands - Plant

Integrated Prop Stands – Plant

Optional Extras

Optional Extras

  • Aluminium floor covering
  • Lashing rings per pair
  • Spare wheel kit
  • GH models have the option of a full width ramp or adjustable sliding skids

KX35324 TREADPLATE GH1054BT

TREADPLATE

KX35320 GH SPARE WHEEL

GH SPARE WHEEL

KX35311 GH WINCH KIT

GH WINCH KIT

Brochure
