Ifor Williams – Transporta

The Transporta is the newest trailer within the Ifor Williams car transporter range.

The perfect trailer for motor sport enthusiasts, small racing teams and classic car owners, the enclosed car transporter offers protection from the elements whilst transporting and storing high value vehicles. All models feature a durable galvanised steel chassis, with the tilt-bed model featuring a manual hydraulic tilting bed which accommodates most vehicles and for vehicles with low ground clearance an optional pair of ramp skid extenders are available.
The Transporta comes as standard with two large side openings which provide excellent access to the vehicle being transported. The customer has a choice of either side-hinged doors (like a barn door) or a top-hinged door. The latter doubles as an awning. Any combination of side-hinged or top-hinged doors on either side can be ordered.

In addition a further two hatches, forward of the side doors, give convenient access to the front of the trailer enabling wheels straps to be fitted and tightened on the vehicle which is being transported. An electric winch option is a popular accessory and this feature is further enhanced by having a sliding winch bracket permitting the winch to be conveniently aligned with the vehicle’s towing eye.

Model Specifications

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Internal

Height

Overall Length Overall Width Overall

Height

Loading Angle
CCT5221
FIXED DRAWBAR
195/60R12 3500kg 1480kg 5.22m 2.24m 2.04m 6.78m 2.33m 2.66m 15°
CCT5221
TILDBED
195/60R12 3500kg 1510kg 5.22m 2.24m 2.04m 6.78m 2.33m 2.66m 7-8°

Standard Features

Heavy Duty Flooring

Heavy Duty Flooring

Side Opening Door

Side Opening Door

LED Interior Lights

LED Interior Lights

Spring Assisted Rear Ramp

Spring Assisted Rear Ramp

Upward Opening Door

Upward Opening Door

Side Access Hatch

Side Access Hatch

Optional Extras

Transporta-Front-Storage-Cabinet-6893 Front Storag

Front Storage Cabinet

Transporta-LED-Floor-Strip-Lights-5805 LED Floor S

LED Floor Strip Lights (set of 4)

Transporta-Central-Front-Lamp-5813 Central Front L

Central Front Lamp

Transporta-Soft-Link-Adjustable-Wheel-Straps-5765

Soft Link Adjustable Wheel Straps (Pair)

Transporta-Tyre-Rack Tyre Rack

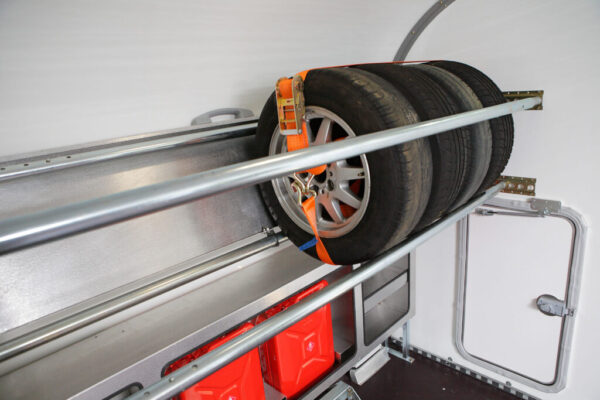

Tyre Rack

Transporta-Winch-Mounting-Kit Winch Mounting Kit

Winch Mounting Kit

Transporta-Floor-Storage-Box-6724 Floor Storage Bo

Floor Storage Box

Transporta-Wheel-Stop-Kit-4110 Wheel Stop Kit

Wheel Stop Kit

Transporta-Alloy-Wheels Alloy Wheels

Alloy Wheels

Transporta-Front-Wall-Access-Hatch Front Wall Acce

Front Wall Access Hatch

Transporta-Hinged-Workbench-and-Tyre-Rack Hinged W

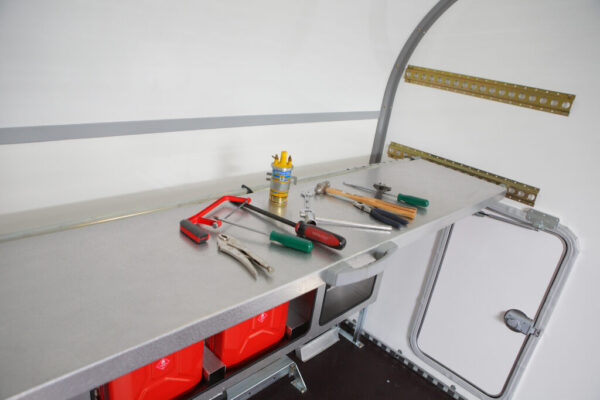

Hinged Workbench and Tyre Rack

Transporta-Ramp-Skid-Extenders Ramp Skid Extenders

Ramp Skid Extenders

Model Details

Ifor Williams – Transporta

The Transporta is the newest trailer within the Ifor Williams car transporter range.

The perfect trailer for motor sport enthusiasts, small racing teams and classic car owners, the enclosed car transporter offers protection from the elements whilst transporting and storing high value vehicles. All models feature a durable galvanised steel chassis, with the tilt-bed model featuring a manual hydraulic tilting bed which accommodates most vehicles and for vehicles with low ground clearance an optional pair of ramp skid extenders are available.
The Transporta comes as standard with two large side openings which provide excellent access to the vehicle being transported. The customer has a choice of either side-hinged doors (like a barn door) or a top-hinged door. The latter doubles as an awning. Any combination of side-hinged or top-hinged doors on either side can be ordered.

In addition a further two hatches, forward of the side doors, give convenient access to the front of the trailer enabling wheels straps to be fitted and tightened on the vehicle which is being transported. An electric winch option is a popular accessory and this feature is further enhanced by having a sliding winch bracket permitting the winch to be conveniently aligned with the vehicle’s towing eye.

Model Specifications

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Internal

Height

Overall Length Overall Width Overall

Height

Loading Angle
CCT5221
FIXED DRAWBAR
195/60R12 3500kg 1480kg 5.22m 2.24m 2.04m 6.78m 2.33m 2.66m 15°
CCT5221
TILDBED
195/60R12 3500kg 1510kg 5.22m 2.24m 2.04m 6.78m 2.33m 2.66m 7-8°
Key Features

Standard Features

Heavy Duty Flooring

Heavy Duty Flooring

Side Opening Door

Side Opening Door

LED Interior Lights

LED Interior Lights

Spring Assisted Rear Ramp

Spring Assisted Rear Ramp

Upward Opening Door

Upward Opening Door

Side Access Hatch

Side Access Hatch

Optional Extras

Optional Extras

Transporta-Front-Storage-Cabinet-6893 Front Storag

Front Storage Cabinet

Transporta-LED-Floor-Strip-Lights-5805 LED Floor S

LED Floor Strip Lights (set of 4)

Transporta-Central-Front-Lamp-5813 Central Front L

Central Front Lamp

Transporta-Soft-Link-Adjustable-Wheel-Straps-5765

Soft Link Adjustable Wheel Straps (Pair)

Transporta-Tyre-Rack Tyre Rack

Tyre Rack

Transporta-Winch-Mounting-Kit Winch Mounting Kit

Winch Mounting Kit

Transporta-Floor-Storage-Box-6724 Floor Storage Bo

Floor Storage Box

Transporta-Wheel-Stop-Kit-4110 Wheel Stop Kit

Wheel Stop Kit

Transporta-Alloy-Wheels Alloy Wheels

Alloy Wheels

Transporta-Front-Wall-Access-Hatch Front Wall Acce

Front Wall Access Hatch

Transporta-Hinged-Workbench-and-Tyre-Rack Hinged W

Hinged Workbench and Tyre Rack

Transporta-Ramp-Skid-Extenders Ramp Skid Extenders

Ramp Skid Extenders
